Before You Start

  • Install the latest Docker Desktop (or Docker Engine with the Compose plugin) and reboot if prompted.
  • Ensure at least 2 GB of free disk space for base images and seed data.
  • Confirm your account has access to the repository in the organisation’s source control system.

Quick Setup

  1. Copy and unzip: <dsp> and cd dsp.
  2. Copy any provided .env templates if custom credentials are required.
  3. Bring the stack online with docker-compose up --build.
  4. Wait for the first run to import db/niph_dsps.sql into MySQL automatically.
  5. Visit each service to confirm connectivity (see table below).

Understanding the Data Ecosystem

The Docker stack wires the PHP/Apache portal, MySQL database, phpMyAdmin console, and R-enabled Jupyter service together. Shared bind mounts ensure uploaded datasets and vetted R scripts stay identical across runtime services.

Platform Architecture

  • dsp_app serves dashboards on port 8082 and talks to MySQL over the internal network.
  • dsp_db seeds from db/niph_dsps.sql on first boot and exposes port 3307 for host access.
  • dsp_phpmyadmin and dsp_jupyter connect to the same database/files so admins can troubleshoot or run reproducible analytics.

Data Lifecycle & Governance

  • dsps_tbl_datasource binds each dataset to its owner (fkisp_id_of), type, category, filenames, and publication state.
  • dsps_tbl_datasource_permission logs read/download/analyze approvals while dsps_tbl_datasource_used tracks downstream usage.
  • ist_tbl_people and ist_tbl_users provide identity, roles, and the isu_can_run_r capability flag for analytics features.

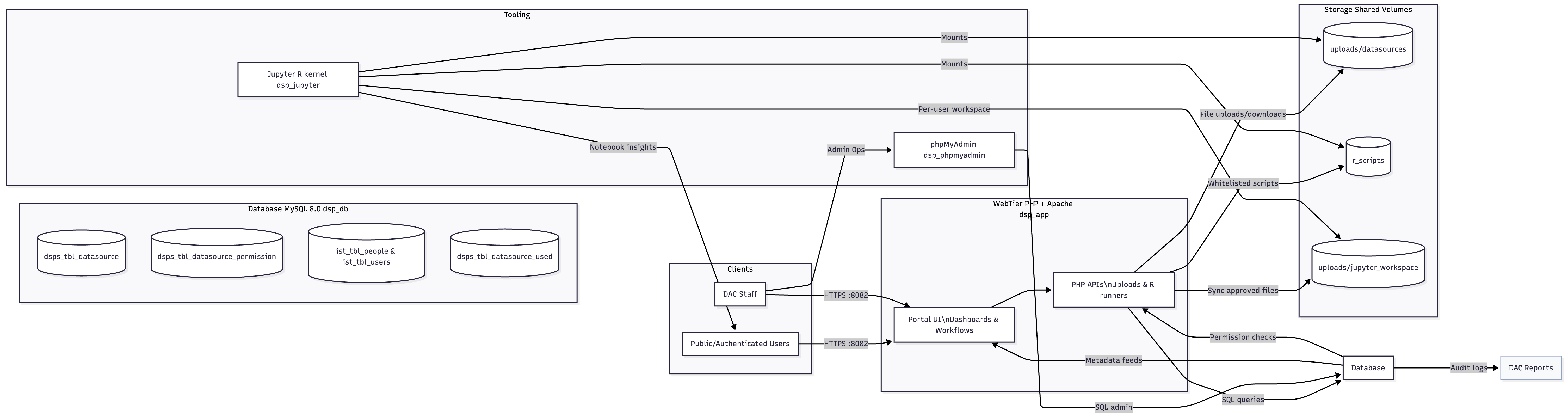

Diagram Reference

NIPH DSP data ecosystem overview
Download PNG

Service Endpoints

Service URL Notes
PHP Application http://localhost:8082 Uses credentials defined in docker-compose.yml.
phpMyAdmin http://localhost:8081 Login with dsp_user/dsp_pass or MySQL root credentials.
Jupyter (R) http://localhost:8888 Authenticate with token dsp-token.
MySQL (host access) localhost:3307 Database niph_dsps, user dsp_user/dsp_pass.

Configuration Checklist

Update the following environment variables in docker-compose.yml (or host environment) to match your deployment:

Variable Description Default
DB_HOST Database hostname reachable from the PHP container. mysql
DB_PORT MySQL port exposed inside the container. 3306
DB_NAME Name of the primary DSP database. niph_dsps
DB_USER Application database username. dsp_user
DB_PASS Application database password. dsp_pass
RSCRIPT_PATH Override if Rscript is not located at the system default. /usr/bin/Rscript
JUPYTER_EXTERNAL_URL Base URL embedded in the portal when exposing Jupyter on a custom host or domain. https://localhost
JUPYTERHUB_PORT Published host port for the JupyterHub ingress. 443
JUPYTER_TOKEN Legacy token for standalone Jupyter deployments. (empty)
DSP_APP_ORIGINS Space-separated origins allowed to call Jupyter APIs (CORS). http://localhost:8082 http://127.0.0.1:8082
DSP_FRAME_ANCESTORS Space-separated origins permitted to embed Jupyter in an iframe. http://localhost:8082 http://127.0.0.1:8082

R in JupyterHub Service

The dsp_jupyterhub service launches per-user JupyterLab containers through JupyterHub. These defaults mirror the values exposed in the in-app JupyterHub Service Reference so you can verify overrides in .env or infrastructure tooling.

Setting Default How to Override
Notebook Base URL https://localhost Set JUPYTER_EXTERNAL_URL (or configure your reverse proxy) when publishing under a different host or scheme.
Published Port 443 Update the ${JUPYTERHUB_PORT:-443}:8000 mapping in docker-compose.yml or export JUPYTERHUB_PORT in your .env.
Authentication Token (managed by OAuth) OAuth replaces static tokens; keep JUPYTER_TOKEN empty when using JupyterHub.
Workspace Mount datasources/user_{person_id} Mounted from ./uploads/jupyter_workspace; adjust the volume in docker-compose.yml if you relocate storage.

Environment Override Guidance

Variable Purpose Notes
JUPYTER_EXTERNAL_URL Overrides the base URL surfaced in the portal and iframe embeds. Leave empty to fall back to the detected hostname and JUPYTERHUB_PORT.
JUPYTERHUB_PORT Sets the host port used when constructing external URLs. Must align with the published port mapping in docker-compose.yml (fallback to JUPYTER_PORT for legacy deployments).
DSP_APP_ORIGINS Extends the CORS allow list for DSP web origins calling notebook APIs. Include every host that loads the embedded notebook via XHR.
DSP_FRAME_ANCESTORS Controls the Content-Security-Policy frame-ancestors directive for notebook iframes. Match the origins defined in DSP_APP_ORIGINS (and any admin hostnames).
JUPYTERHUB_USERNAME_TEMPLATE Pattern used to map DSP accounts to JupyterHub usernames. Defaults to user_{person_id}. Placeholders: {person_id}, {username}, {email}. Only used when JUPYTERHUB_USER_PATH is set.
JUPYTERHUB_USER_PATH Template for the per-user notebook route served by JupyterHub. When empty, DSP assumes a single JupyterLab instance and embeds the base URL. Set (for example) to user/{username}/lab in JupyterHub deployments.
DSP_OAUTH_CLIENT_ID Client identifier issued to JupyterHub. Matches the record created in dsp_oauth_clients.
DSP_OAUTH_CLIENT_SECRET Confidential secret shared with JupyterHub. Store securely (prefer Docker secrets or vault tooling).
DSP_OAUTH_AUTHORIZE_URL Endpoint JupyterHub uses for the OAuth authorization code flow. Typically https://portal.example.com/oauth/authorize.
DSP_OAUTH_TOKEN_URL Token exchange endpoint exposed by DSP. Typically https://portal.example.com/oauth/token.
DSP_OAUTH_USERINFO_URL Endpoint returning user profile details for JupyterHub. Typically https://portal.example.com/oauth/userinfo.
JUPYTERHUB_OAUTH_CALLBACK Callback URL the hub advertises to DSP. Should match the hub’s public URL (e.g., https://hub.example.com/hub/oauth_callback).
  • Seeded R scripts live under r_scripts/ and appear in the notebook at work/r_scripts for quick demos.
  • When tightening security headers, keep DSP_APP_ORIGINS and DSP_FRAME_ANCESTORS aligned with your published host so the embedded notebook continues to load.

Current Runtime Snapshot

Setting Value (detected) Notes
Notebook Base URL Derived from JUPYTER_EXTERNAL_URL or the active host/port.
Published Port Matches JUPYTERHUB_PORT (or legacy JUPYTER_PORT) when set, otherwise the compose default.
Authentication Token Leave blank when OAuth is enabled via JupyterHub.
Workspace Mount Reflects the root folder synced into notebooks for the active account.

Active Environment Overrides

    $value): ?>
  • :

No overrides detected; defaults from docker-compose.yml are currently active.

Maintenance Commands

# Stop and remove containers, keep database volume
docker-compose down

# Stop containers and remove database volume (fresh start)
docker-compose down -v

# Tail logs from all services
docker-compose logs -f

Troubleshooting

  • Database state stuck? Remove the mysql_data volume with docker-compose down -v to trigger a fresh import.
  • Rscript not found? Rebuild the PHP image (docker-compose build) or set RSCRIPT_PATH to the correct binary.
  • Port already in use? Adjust published ports (8081, 8082, 8888, 3307) in docker-compose.yml.
  • Permission denied on uploads? Run chmod -R 775 uploads (or update group ownership) on the host machine.
